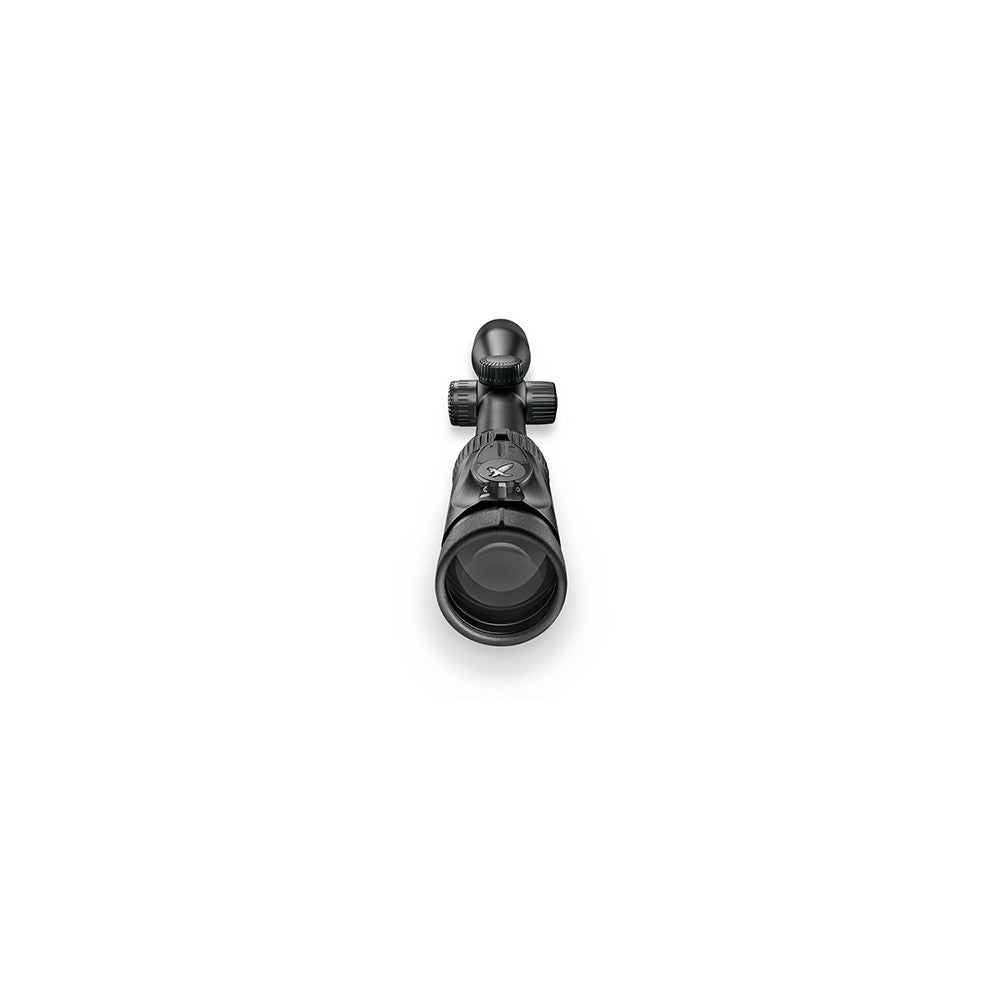

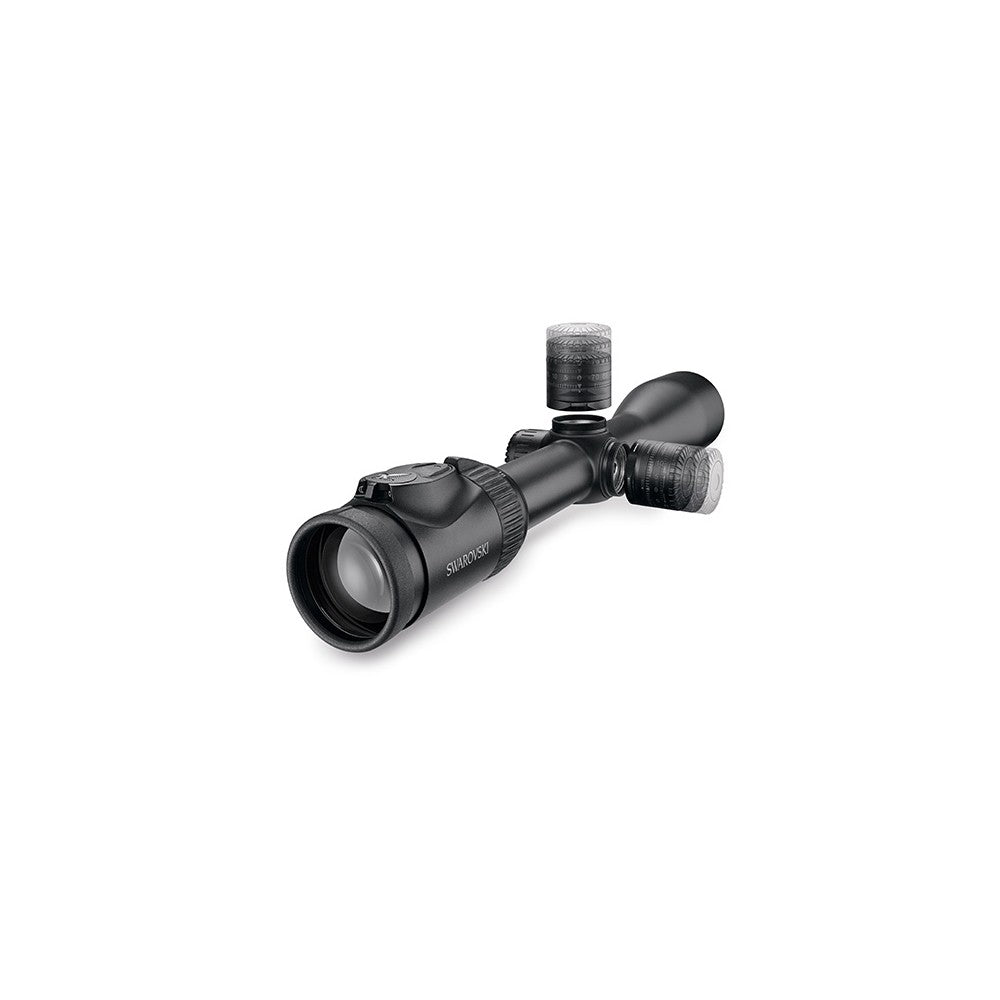

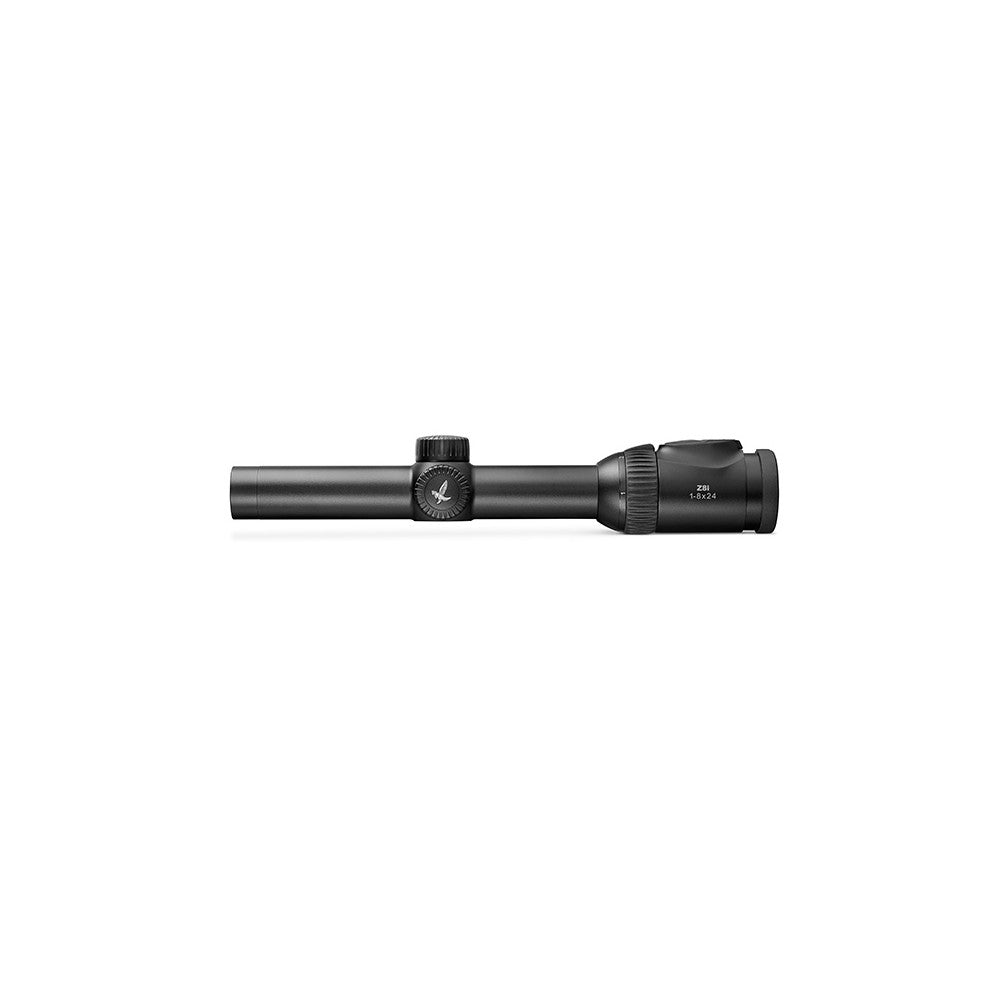

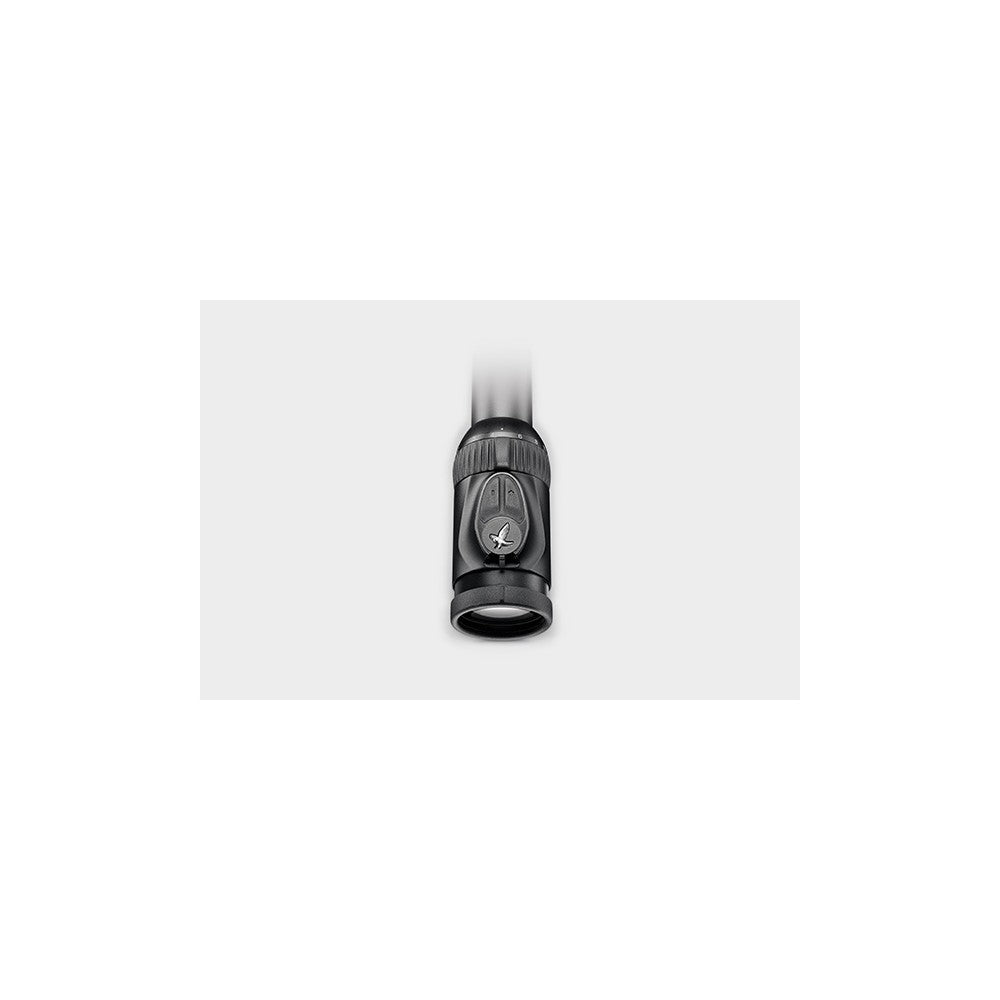

Luneta Swarovski Z8i 1-8x24 P
Z8i reprezinta ultimul model de luneta lansat de specialistii de la Swarovski. Se remarca printr-un factor de transmisie a luminii excelent.
Modelul Z8i 1-8×24 este cea mai buna luneta atunci cand vine vorba de vanatoarea la goana. Ofera un camp vizual foarte larg de 42,5metri.
Caracteristici
Effective objective lens diameter (mm): 8.2-24
Exit pupil diameter (mm): 8.1-3.0
Exit pupil distance (mm) (Eye relief): 95
Field of view (ft/100 yds / m/100 m): 127.5-15.9 / 42.5-5.3
Field of view (degrees): 24.0-3.0
Field of view, apparent (degrees): 24
Dioptric compensation (dpt): -3 to +2
Light transmission (%): 93
Twilight factor acc. to ISO 14132-1: 2.8-13.9
Impact point corr. per click (in/100 yds / mm/100 m): 0.36 / 10
Max. elevation / windage adjustment range (in/100 yds / m/100 m): 72 / 2
Objective filter thread: M 27x0.75
Technical Data
Length (in / mm): 11.9 / 301
Weight (oz / g): 18.2 / 515
Central tube diameter (in / mm): 1.18 / 30
Functional temperature: -4 °F to +131 °F (-20 °C / +55 °C)
Storage temperature: -22 °F to +158 °F (-30 °C / +70 °C)
Submersion tightness: 13 ft / 4 m water depth (inert gas filling)
Illumination unit
Brightness levels
Twilight: 0 - 32 / Day: 33 - 64
Operating time (h): twilight factor at medium brightness: 1,400;
daylight factor at medium brightness: 180
